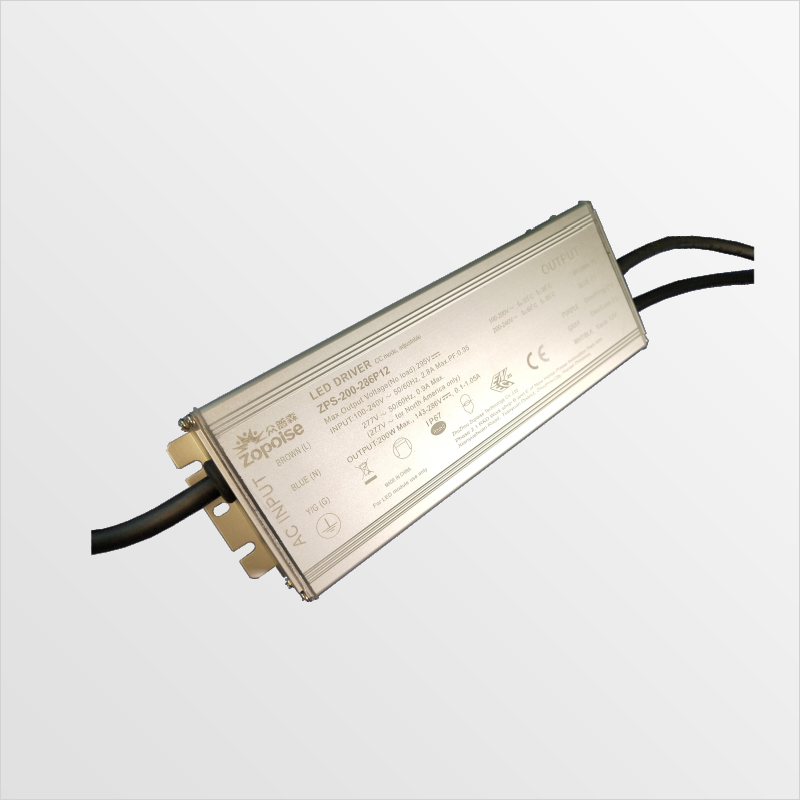

Waterproof outdoor Isolated–Standard version

Waterproof outdoor Isolated–Standard version

Key parameter：

Input voltage: 100-277Vac

Ripple current＜15%

Surge protection: line-line 5KV; line-earth 10KV

3 in 1 dimming


￥ 0.00
0.00


Key parameter：

Input voltage: 100-277Vac

Ripple current＜15%

Surge protection: line-line 5KV; line-earth 10KV

3 in 1 dimming



    Product characteristics：

      Class Ⅰ、Ⅱ power supply optional
      Active PFC
      Power factor ＞ 0.9
    THD< 20%
      Multiple protection: SCP、OVP、OTP
      Degrees of protection: IP65


    Environment and reliability：

      Ambient temperature: -40～+85℃
      Life time：50000H



    Application：

      Suitable for commercial lighting, industrial lighting, road lighting, landscape lighting and other lamps and systems.


       Model list

Model
 Power
 Output Voltage
 Output Current
 Eff
 Dimension
 Certification
ZPS/B-042- XXXN
 42W
 20-62V
 0.70-1.05A
 87%
 129*55.0*35.0 (mm)
 CE/ENEC
ZPS/B-075-XXXP
 75W
 20-108V
 0.70-2.67A
 88%
 129*66.2*36.8 (mm)
 CE/ENEC
ZPS/B-105-XXXP
 105W
 20-150V
 0.70-3.50A
 92% 154*66.2*36.8 (mm)
 CE/ENEC
ZPS/B -150-XXXP
 150W
 20-214V
 0.70-5.40A
 92%
 185*66.2*38.8 (mm)
 CE/ENEC
ZPS/B -200-XXXP
 200W
 20- 286V
 0.70-6.67A
 93%
 194*66.2*38.8 (mm)
 CE/ENEC
ZPS/B -240-XXXP
 240W
 20-343V
 0.70-7.50A
 93%
 209*66.2*38.8 (mm)
 CE/ENEC
ZPS/B -320 XXXP
 320W
 20-457V
 0.70-10.0A
 94%
 233.2*98*40.3 (mm)
 CE/ENEC
