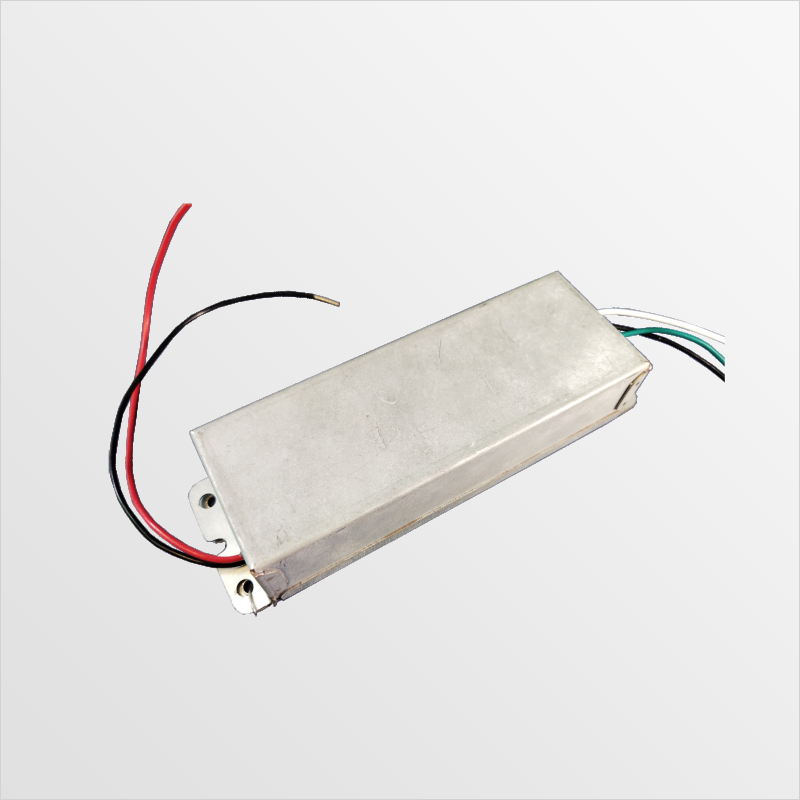

Isolated–Basic version

Isolated–Basic version

Key parameter：

Input voltage: 100-277Vac

Ripple current＜15%

Surge protection: line-line 4KV; line-earth 6KV

With no dimming


￥ 0.00
0.00


Key parameter：

Input voltage: 100-277Vac

Ripple current＜15%

Surge protection: line-line 4KV; line-earth 6KV

With no dimming



    Product characteristics：

      Class Ⅰ、Ⅱ power supply optional
      Active PFC
      Power factor ＞ 0.9
      THD<20%
      Multiple protection: SCP、OVP、OTP
      Degrees of protection: IP65


    Environment and reliability：

      Ambient temperature: -40～+85℃
      Life time：50000H



     Application：

      Suitable for commercial lighting, industrial lighting, road lighting, landscape lighting and other lamps and systems.


       Model list

Model
 Power
 Output Voltage
 Output Current
 Eff
 Dimension
 Certification
ZPS-010-XXXN
 10W
 27-42V
 0.20A
 85%
 120*30*25 (mm)
 CE
ZPS-020-XXXN
 20W
 27-42V
 0.40A
 86%
 120*30*25 (mm)
 CE
ZPS-030-XXXN
 30W
 27-42V
 0.64A
 87%
 130*35*25 (mm)
 CE
ZPS -050-XXXN
 50W
 27-42V
 1.00A
 87%
 145*45*28 (mm)
 CE





LED drive power
