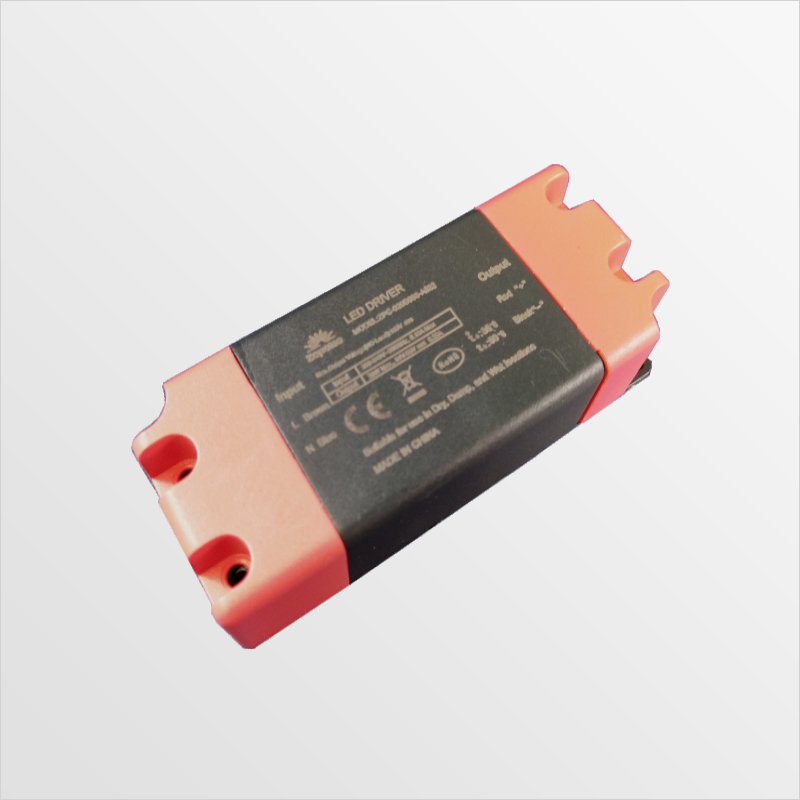

Panel light non isolated-Basic version

Panel light non isolated-Basic version

Key parameter：

Input voltage: 220-240Vac

Ripple current＜15%

Surge protection: line-line 1KV; line-earth 2KV

With no dimming


￥ 0.00
0.00


Key parameter：

Input voltage: 220-240Vac

Ripple current＜15%

Surge protection: line-line 1KV; line-earth 2KV

With no dimming



    产品特点

      Class I power supply
      Single pole PFC
      Power factor ＞ 0.9
      THD<20%
      Multiple protection: SCP、OVP、OTP
      Degrees of protection: IP20


    Environment and reliability：

      Ambient temperature：-20～+50℃
      Life time：30000H



    应用场合

      Suitable for commercial lighting, office lighting and other indoor lighting systems


       Model list

Model
 Power
 Output Voltage
 Output Current
 Eff
 Dimension
 Certification
ZPC-10W-010A096-AXXX
 10W
 50-96V
 100mA
 92%
 213*90*33.5 (mm)
 CE
ZPC-20W-020A096-AXXX
 20W
 50-96V
 200mA
 93%
 213*90*33.5 (mm)
 CE
ZPC-30W-030A096-AXXX
 30W
 50-96V
 300mA
 95%
 213*90*33.5 (mm)
 CE
ZPC-40W-040A096-AXXX
 40W
 50-96V
 400mA
 95%
 213*90*33.5 (mm)
 CE
ZPC-50W-050A096-AXXX
 50W
 50-96V
 500mA
 96%
 213*90*33.5 (mm)
 CE
