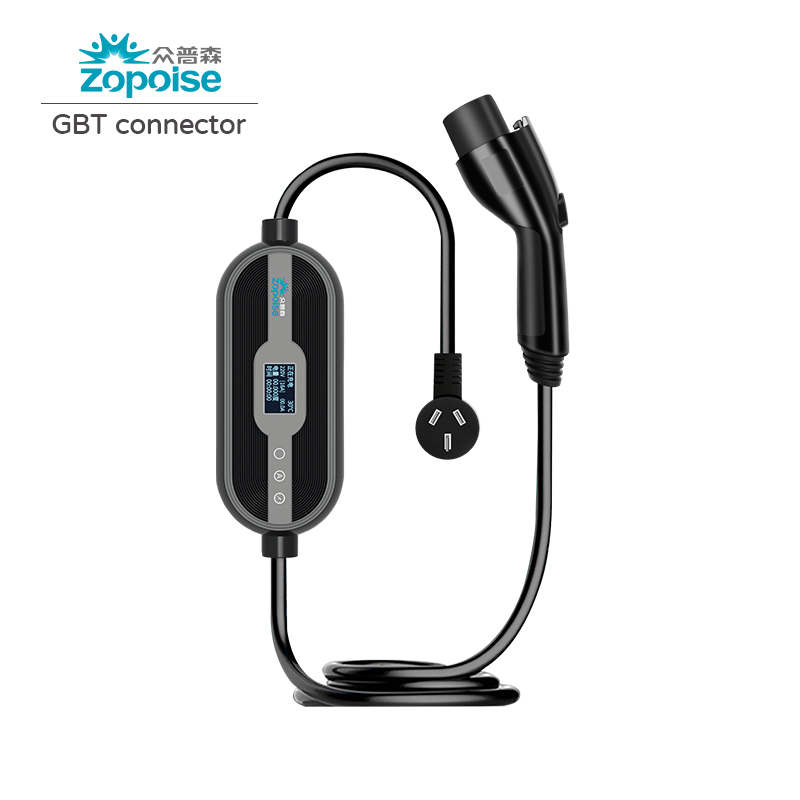

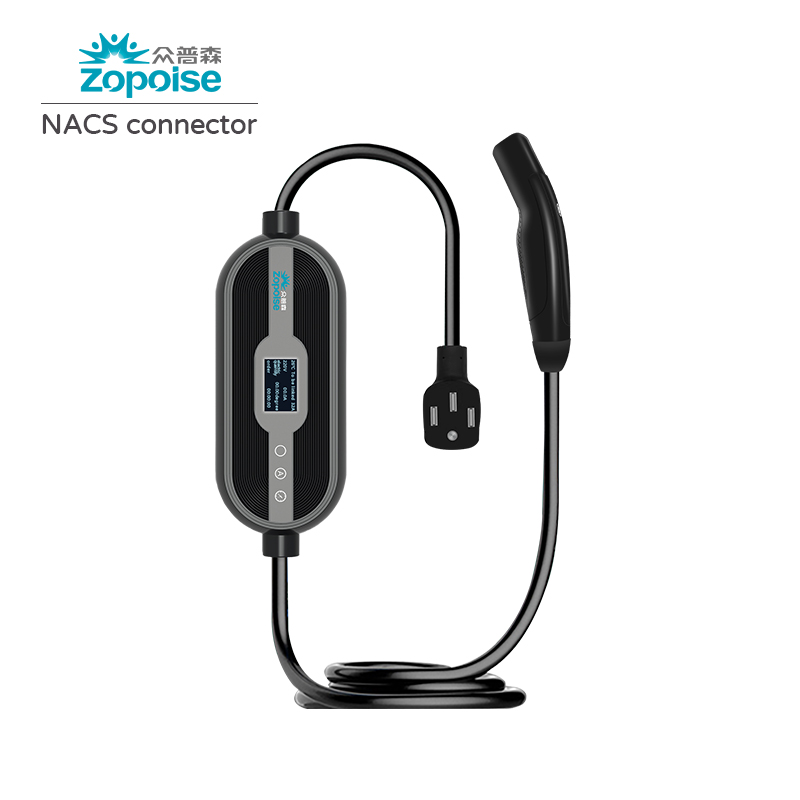

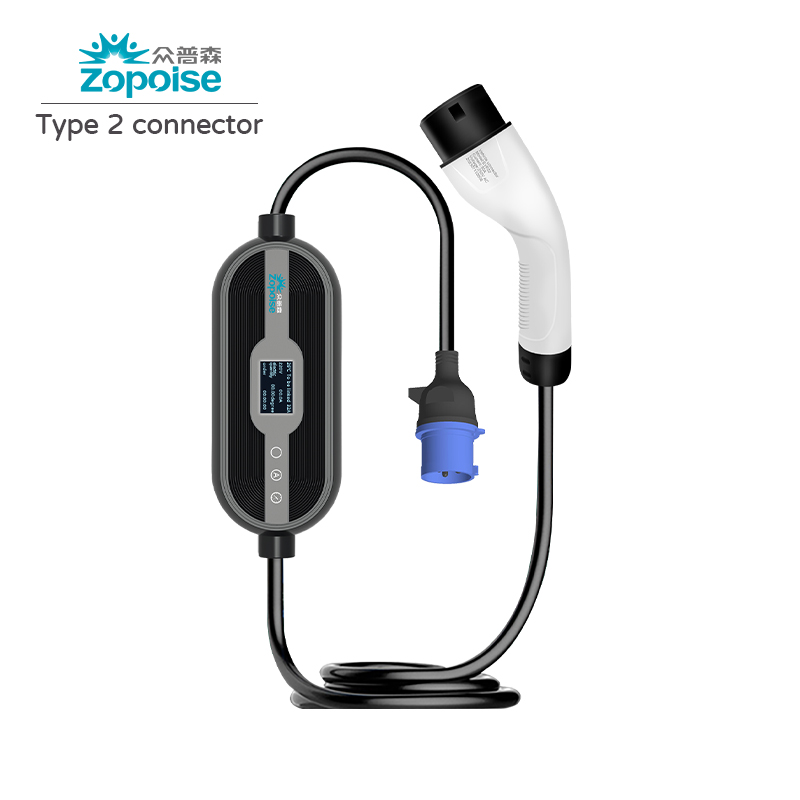

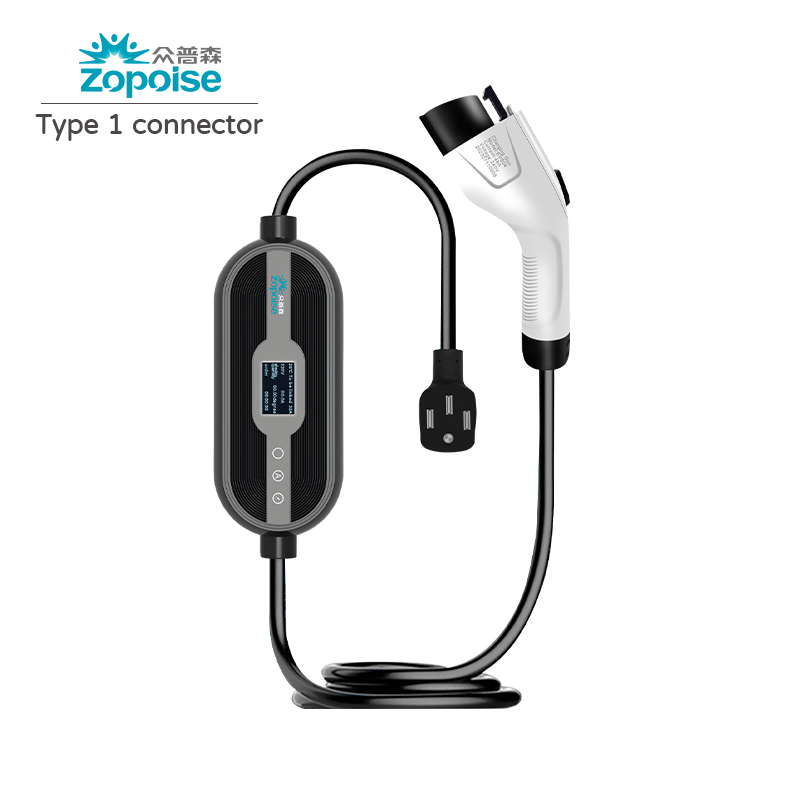

3.5kW/7kW AC Portable/Wallbox EV Charger

3.5kW/7kW AC Portable/Wallbox EV Charger

Product Features
 Highly compatible with new energy vehicle charging interfaces/protocols.

Multi-intelligent detection: real-time voltage/current monitoring, precise power calculation & safety protection.

1.3" OLED display: standby/charging/fault status & parameters.

Authorization modes: plug-and-charge, APP/button scheduling.

Charging modes: auto-full, timed charging.

4-level adjustable current with memory (auto-restores last gear on power-up).

Remote O&M platform: health diagnosis, fault (early warning), OTA upgrades (reduces costs).

Product certified with ETL&CETL, FCC, IC, TÜVmark, CE; compliant with CQC.

0.00
0.00


Product Features
 Highly compatible with new energy vehicle charging interfaces/protocols.

Multi-intelligent detection: real-time voltage/current monitoring, precise power calculation & safety protection.

1.3" OLED display: standby/charging/fault status & parameters.

Authorization modes: plug-and-charge, APP/button scheduling.

Charging modes: auto-full, timed charging.

4-level adjustable current with memory (auto-restores last gear on power-up).

Remote O&M platform: health diagnosis, fault (early warning), OTA upgrades (reduces costs).

Product certified with ETL&CETL, FCC, IC, TÜVmark, CE; compliant with CQC.

     Applications

    Suitable for home use and industrial sockets.

      Suitable for bringing along, charging in the journey and emergency charging,etc.


       Product Parameters



ItemZA05-X03K5XX-X001ZA05-X007KXX-X001ZA05-U09K6XX- X001ZA05-X011KXX- X001
Input Voltage

AC220V±20%(CN)

AC230V±15%(EU)

AC240V±15%(US)

AC240V±15% (US)AC400V±15% (EU)
Input Frequency50/60Hz±1Hz
Output Power3.5kW7kW9.6kW11kW
Operating Current16A32A40A16A(三相)
Current Range8A-10A-13A-16A16A-20A-24A-32A16A-24A-32A- 40A8A-10A-13A- 16A
Display Size1.3 Inches
CommunicationWiFi&Bluetooth
Gun Cable Length

3.5m/5m/7m/7.5m

Temperature /Humidity-30~+50℃/5%~95%RH
ProtectionIP65
Appearance Size297mm×106.6mm×53.8mm
Product Weight<4.8KG
Leakage Protection

Type A+DC6mA(CN, EU)/CCID20(US)
