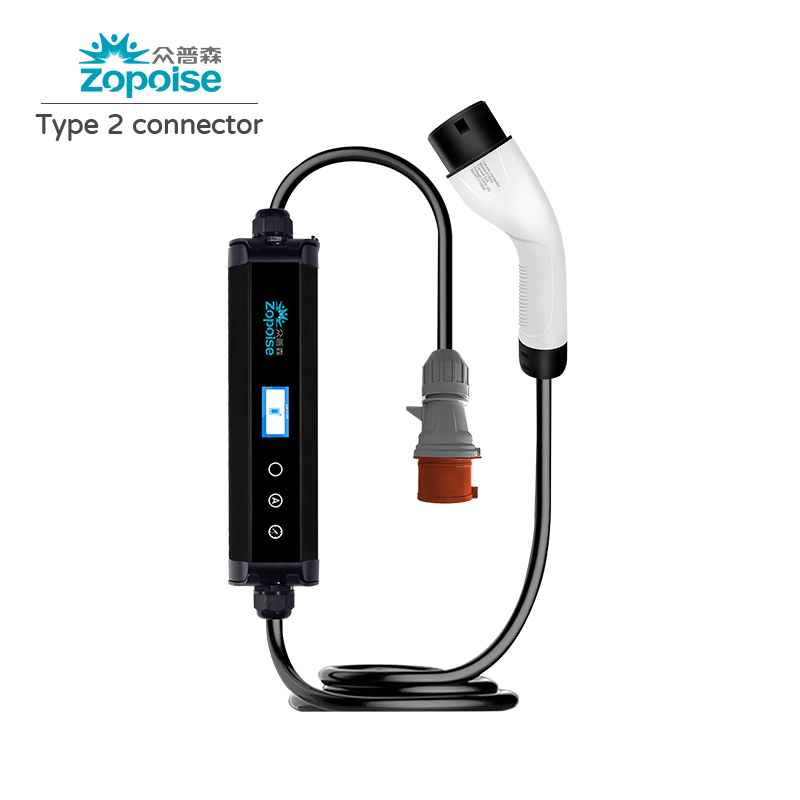

3.5kW/7kW AC Portable/Wallbox EV Charger

3.5kW/7kW AC Portable/Wallbox EV Charger

Product Features
 Highly compatible with new energy vehicle charging interfaces/protocols.

Multi-intelligent detection: real-time voltage/current monitoring, precise power calculation & safety protection.

1.9" LCD display: standby/charging/fault status & params Authorization modes: plug-and-charge, APP/button scheduling.

Charging modes: auto-full, timed charging.

4-level adjustable current with memory (auto-restores last gear on power-up).

Remote O&M platform: health diagnosis, fault (early warning), OTA upgrades (reduces costs).

Product certified with ETL&CETL, FCC, TÜVmark.

0.00
0.00


Product Features
 Highly compatible with new energy vehicle charging interfaces/protocols.

Multi-intelligent detection: real-time voltage/current monitoring, precise power calculation & safety protection.

1.9" LCD display: standby/charging/fault status & params Authorization modes: plug-and-charge, APP/button scheduling.

Charging modes: auto-full, timed charging.

4-level adjustable current with memory (auto-restores last gear on power-up).

Remote O&M platform: health diagnosis, fault (early warning), OTA upgrades (reduces costs).

Product certified with ETL&CETL, FCC, TÜVmark.

     Applications

    Suitable for home use and industrial sockets.

      Suitable for bringing along, charging in the journey and emergency charging,etc.


       Product Parameters



ItemZA06-U007KXX-X001ZA06-U09K6XX-X001
ZA06-E011KXX-X001ZA06-E022KXX-X001
Input VoltageAC240V±15%AC400V±10%
Input Frequency60Hz±1Hz50Hz±1Hz
Output Power7kW9.6kW11kW22kW
Current32A40A16A(3-phase)32A(3-phase)
Current Range16A-20A-24A-32A16A-24A-32A-40A8A-10A-13A-16A16A-20A-24A-32A
Display Size1.9 inches
CommunicationWiFi&Bluetooth
Gun Cable Length5m/7m/7.5m

Temperature/
Humidity

-30~+40℃/5%~95%RH
ProtectionIP66
Appearance SizeLength420mm; Diameter80mm
Product Weight<5.8KG
Leakage Protection

Type A+DC6mA(EU)/CCID20(US)
