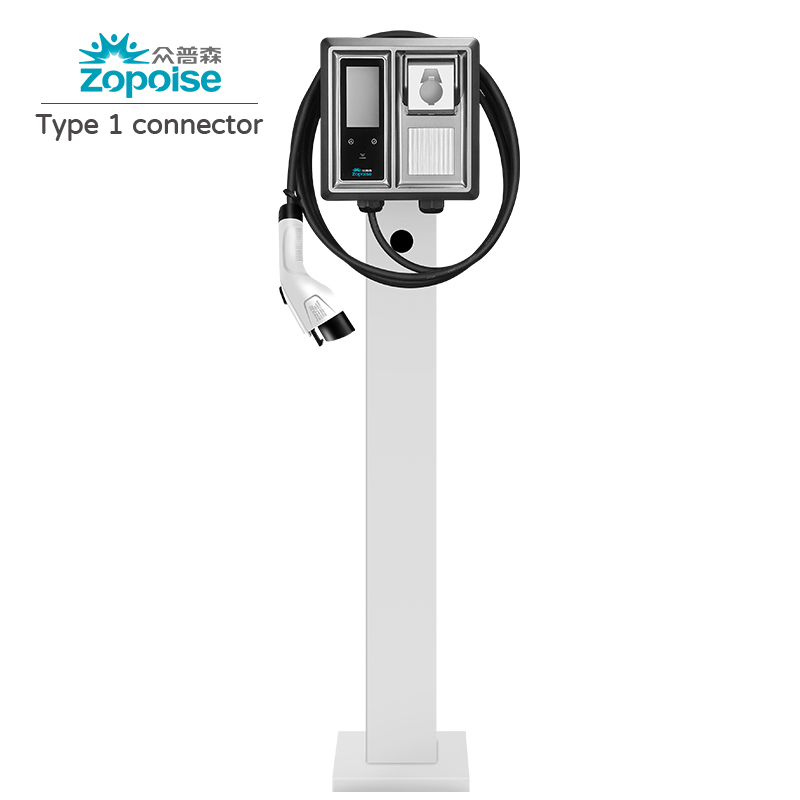

7kW/9.6kW/11kW/22kW Wallbox/Floor Mounted AC EV Charger

7kW/9.6kW/11kW/22kW Wallbox/Floor Mounted AC EV Charger

Product Features
 High compatibility with charging interfaces and communication protocols of new energy vehicle models, featuring strong adaptability.

 Equipped with multiple intelligent detection functions, supporting real-time monitoring of voltage and current as well as accurate power calculation, and ensuring comprehensive safety protection.

 A 4.3-inch display shows standby, charging and fault statuses and relevant parameters.

 Provides multiple authorization modes including plug-and-charge, card-swiping charging, APP reservation and key reservation charging.

 Supports various charging methods such as automatic full charging and scheduled charging.

 Built-in with a load balancing system that automatically optimizes the power distribution of multiple charging piles to guarantee stable operation.

 Compatible with a remote operation and maintenance platform, enabling equipment health diagnosis, fault early warning and OTA upgrade, and reducing operation and maintenance costs.

 Adopts the OCPP1.6 communication protocol to improve flexibility, scalability and data security.

 The product complies with ETL&CETL, FCC, TÜVmark, CE and CCC certifications.


￥ 0.00
0.00


Product Features
 High compatibility with charging interfaces and communication protocols of new energy vehicle models, featuring strong adaptability.

 Equipped with multiple intelligent detection functions, supporting real-time monitoring of voltage and current as well as accurate power calculation, and ensuring comprehensive safety protection.

 A 4.3-inch display shows standby, charging and fault statuses and relevant parameters.

 Provides multiple authorization modes including plug-and-charge, card-swiping charging, APP reservation and key reservation charging.

 Supports various charging methods such as automatic full charging and scheduled charging.

 Built-in with a load balancing system that automatically optimizes the power distribution of multiple charging piles to guarantee stable operation.

 Compatible with a remote operation and maintenance platform, enabling equipment health diagnosis, fault early warning and OTA upgrade, and reducing operation and maintenance costs.

 Adopts the OCPP1.6 communication protocol to improve flexibility, scalability and data security.

 The product complies with ETL&CETL, FCC, TÜVmark, CE and CCC certifications.


     Applications

    Suitable for home use in residential quarters, private residences, factories and other places.

    Suitable for commercial use in office buildings, urban complexes, etc.

    Suitable for parking lots, public charging station,etc.

      Suitable for New Energy Vehicle 4S Stores, workshop debugging, driving school, etc.





    Product Parameters




ItemZB20-X007KXX-X001ZB20-U09K6XX-X001ZB20-X011KXX-X001ZB20-X022KXX-X001
Input VoltageAC220V±20%(CN)

AC230V±10%(EU)

AC240V±15%(US)


AC240V±15%(US)


AC240V±15%(US)

AC380V±20%(CN)

AC400V±10%(EU)

AC380V±20%(CN)

AC400V±10%(EU)

Input Frequency50/60Hz±1Hz
Output Power7kW9.6kW
11kW22kW
Current32A40A48A/16A(3-phase)32A(3-phase)
Display Size3 inches round LCD screen
CommunicationRFID；WiFi&Bluetooth；4G；Ethernet
Gun Cable Length3.5m/5m/7m/7.5m
Temperature/Humidity-30~+50℃/5%~95%RH
ProtectionIP65
Appearance Size256mm×256mm×148mm
Leakage Protection

Type A+DC6mA(CN)/Type A RCBO AC 30mA +IΔdc 6mA(EU)/CCID20(US)
