40kW/60kW/80kW DC Charger

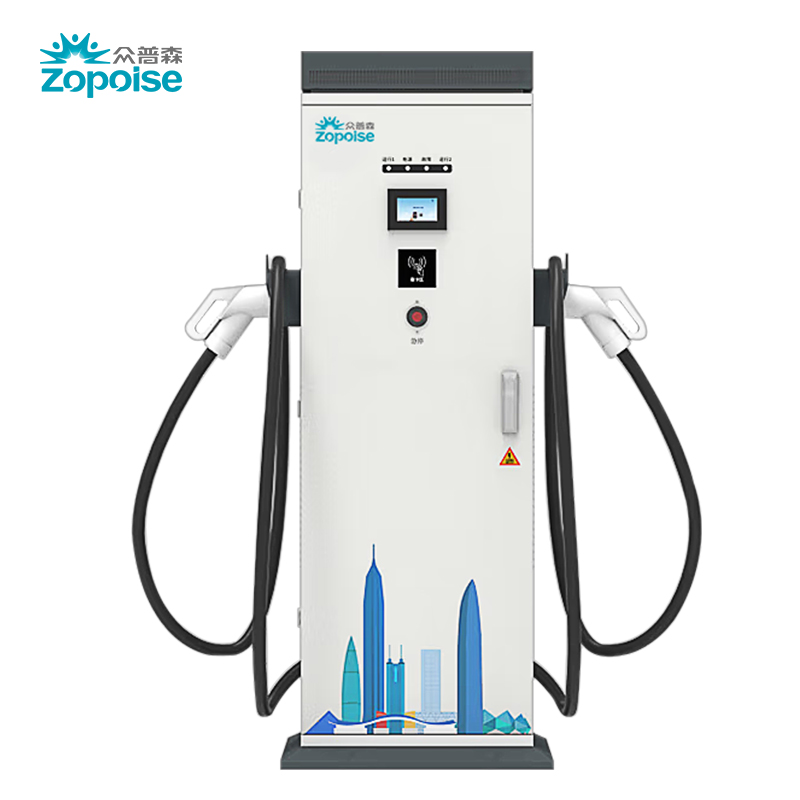

40kW/60kW/80kW DC Charger

Product Features
● Integrated dual-gun design with intelligent power distribution

● Multiple intelligent detection and protection functions

● Voltage and current detection, plus precise electricity metering

● 3-color LED indicator for standby, charging, and fault status

● Multiple authorization modes including card swipe and QR code scan charging

● Multiple charging modes such as auto full charge, fixed-quantity charging, scheduled charging, and fixed-amount charging



￥ 0.00
0.00


Product Features
● Integrated dual-gun design with intelligent power distribution

● Multiple intelligent detection and protection functions

● Voltage and current detection, plus precise electricity metering

● 3-color LED indicator for standby, charging, and fault status

● Multiple authorization modes including card swipe and QR code scan charging

● Multiple charging modes such as auto full charge, fixed-quantity charging, scheduled charging, and fixed-amount charging





     Applications

    Suitable for commercial use, such as office buildings, urban complexes, etc.

    Suitable for on-street parking spots, public parking lots, and fuel charging station,etc.

    Suitable for high-way service areas, socially operated charging stations, workshops&factories, etc.








     Product Parameters



ItemZF02-X040KBD-X001ZF02-X060KBD-X001
ZF02-X080KBD-X001

Input Voltage

380Vac±15%
perating Frequency

50Hz±1Hz

Power Factor0.99
Output Voltage200-750Vdc
Output Power40kW60kW80kW
Output Current66A*2100A*2100A*2
Voltage Regulation Accuracy≤±0.5%
Protection≥95.2%

Current Regulation Accuracy

≤±1.0%

Current Harmonic Distortion (THDI)

≤5%
Metering Accuracy1

Operating Temperature

-30~+50℃

Operating Humidity

5%~95%RH

Cooling Method

Air Cooling

Altitude

<2000m

Protection Class

IP54
Network Connection Method☑Wifi   ☑4G   ☑Ethernet
Communication ProtocolGB/T 27930、DIN70121、ISO15118
Operation Interface7-inch Touch Screen
Payment MethodContactless CPU Charging Card, QR Code Payment
Installation ModeFloor-mounted
Number of Charging Connectors2
Charging Cable Length5m
Dimensions1682mmx550mmx215mm
Protection FunctionsCharging Gun Temperature Detection, Overvoltage/Undervoltage Protection, Overload Protection, Short Circuit Protection, Over-temperature Protection, Surge Protection, Leakage Protection
Connector Standard☑GB/T 20234.3   ☑IEC 62196
Safety Standard

☑GB/T18487、NB/T33001、NB/T33008.1

☑IEC/EN 61851-1、IEC/EN 61851-23
